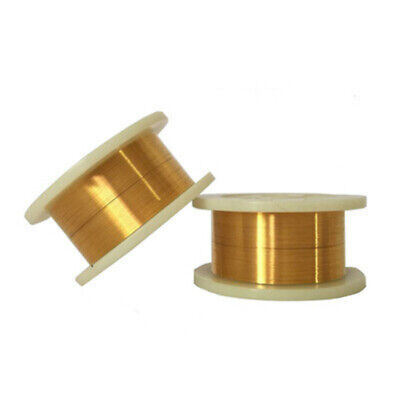

Name: Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Casa > prodotti > Filati di tungsteno placcati d'oro >

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Marca:

WINNER

Certificazione:

ISO9100

Numero di modello:

TW011

Contattici

Richieda una citazione

Dettagli del prodotto

Tipo di prodotto:

Filo di legame

Spessore del rivestimento:

0,0003 mm

Materiale:

Tungsteno

Rivestimento:

Oro

Metri di lunghezza:

500/1000

Metodo di legame:

Ultrasonico

Intervallo di temperatura:

-40 ° C a 200 ° C.

Finitura superficiale:

luminoso

Conduttività:

98%

Dimensioni del pacchetto:

100 metri

Forza di legame:

Alto

Pacchetto:

Bobina

Evidenziare:

gold plated tungsten wire thread

gold plating tungsten line string

tungsten wire with gold plating

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 pz

Prezzo

999

Imballaggi particolari

Rotolare, imballaggio neutrico o con logo OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C, Western Union, T/T

Capacità di alimentazione

100000 rotoli al mese

Prodotti correlati

Filato di tungsteno micron di alta purezza placcato in oro disponibile a prezzi accessibili

Ottenga il migliore prezzo

Video

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Ottenga il migliore prezzo

Video

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Ottenga il migliore prezzo

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione di prodotto

Product Description

Gold is the most commonly used thin coating material and does not chemically react under normal conditions. Gold and tungsten have exactly the same density, but their mechanical properties and melting temperatures vary.The most common way to combine the two is to plate gold on the tungsten wire to form a very thin gold-plated layer, which can improve the wettability during welding, prevent chemical corrosion, reduce the secondary emission of electrons, and achieve good performance. electrical contact and conductivity. Gold-plated tungsten wires have the advantages of good tensile strength, strong wear resistance, good plasticity, strong durability, superior oxidation resistance and low production cost.

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

Product Images
