Name: Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Casa > prodotti > Filati di tungsteno placcati d'oro >

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Marca:

WINNER

Certificazione:

ISO9100

Numero di modello:

TW011

Contattici

Richieda una citazione

Dettagli del prodotto

Tipo di prodotto:

Filo di legame

Spessore del rivestimento:

0,0003 mm

Materiale:

Tungsteno

Rivestimento:

Oro

Metri di lunghezza:

500/1000

Metodo di legame:

Ultrasonico

Intervallo di temperatura:

-40 ° C a 200 ° C.

Finitura superficiale:

luminoso

Conduttività:

98%

Dimensioni del pacchetto:

100 metri

Forza di legame:

Alto

Pacchetto:

Bobina

Evidenziare:

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 pz

Prezzo

999

Imballaggi particolari

Rotolare, imballaggio neutrico o con logo OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C, Western Union, T/T

Capacità di alimentazione

100000 rotoli al mese

Prodotti correlati

Filato di tungsteno micron di alta purezza placcato in oro disponibile a prezzi accessibili

Ottenga il migliore prezzo

Video

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Ottenga il migliore prezzo

Video

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Ottenga il migliore prezzo

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione di prodotto

Product Description

Gold-plated tungsten wire, the surface condition is golden shiny tungsten wire, high temperature resistance, high melting point, low coefficient of thermal expansion, which is suitable for the use of tungsten wire and tungsten heaters
Gold-plated tungsten wire looks better, and the surface is brighter than black tungsten/scheelite wire and sprayed tungsten wire. In a deeper sense, the stability of gold-plated tungsten wire is much higher than that of ordinary tungsten wires
Uses: Gold-plated tungsten wire is used to replace the corrosive tungsten wire and tungsten aluminum wire for photocopier electrodes
Gold-plated tungsten wire can also be used as an ideal electronic material, which can be widely used in scientific research fields such as high energy physics and meteorology

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

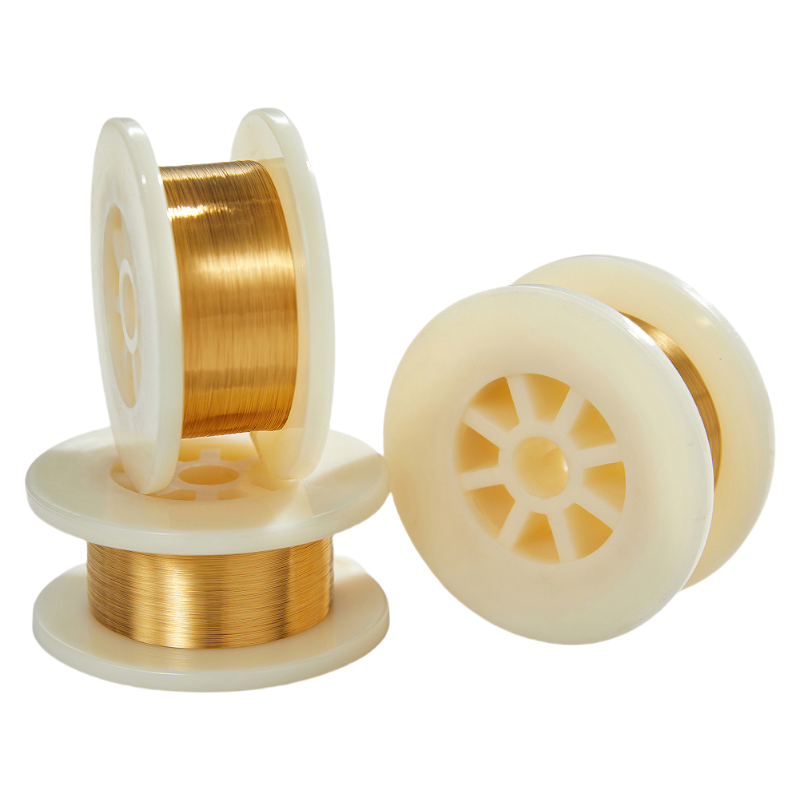

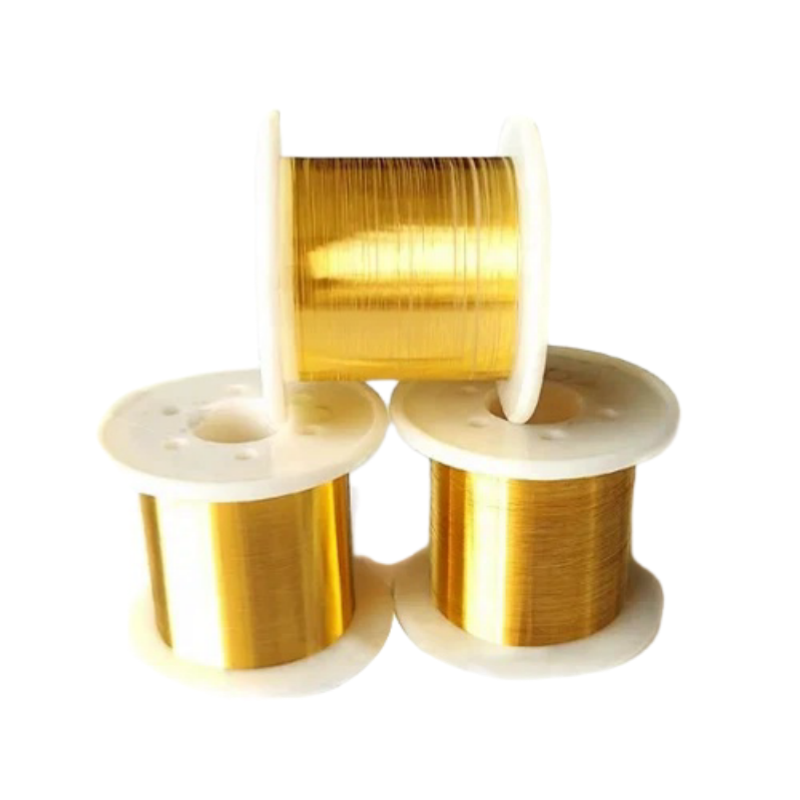

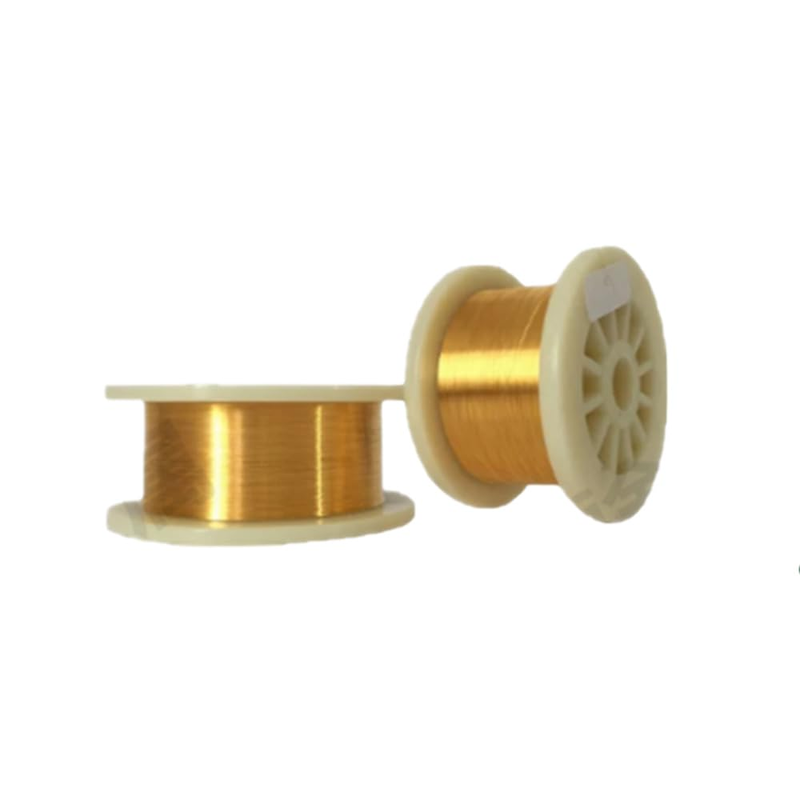

Product Images
