Name: Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Casa > prodotti > Sonde di prova a molla >

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

double ended pogo pin PCB testing

spring loaded probe semiconductor inspection

spring test probes with warranty

Luogo di origine:

Cina

Marca:

WINNER

Certificazione:

ISO9100

Contattici

Richieda una citazione

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

Dettagli del prodotto

Nome del prodotto:

sonda di prova a molla

barile:

PB, Palato d'oro

Stantuffo inferiore:

BeCu/SK4, placcato oro

Stantuffo SUPERIORE:

SK4(Be Cu)/Placcato in oro

Primavera:

SWPB(SUS)/Placcato in oro

Disponibilità:

Dimensioni personalizzate disponibili

Rivestimento:

Oro placcato

Valutazione attuale:

Resistenza di contatto:

100 mAh massimo

Larghezza di banda:

-1,62 dB a 19,6 GHz

induttanza:

1,40nH

Captazione:

1,69pF

Full Actus:

2,0 mm

Corso nominale:

14 mm

Forza della molla:

41 grammi @ 1,4 mm

La vita meccanica supera:

200k

Evidenziare:

double ended pogo pin PCB testing

spring loaded probe semiconductor inspection

spring test probes with warranty

Termini di trasporto & di pagamento

Quantità di ordine minimo

3000pcs

Prezzo

999

Imballaggi particolari

Imballaggio neutrica o con logo OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C, Western Union, T/T

Capacità di alimentazione

100000 rotoli al mese

Prodotti correlati

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Ottenga il migliore prezzo

China Supplier Double ended Pogo Pin Spring Loaded Probe UF-FT064BD816-001

Ottenga il migliore prezzo

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Ottenga il migliore prezzo

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione di prodotto

YOUFU UF-FT101DB128-001 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

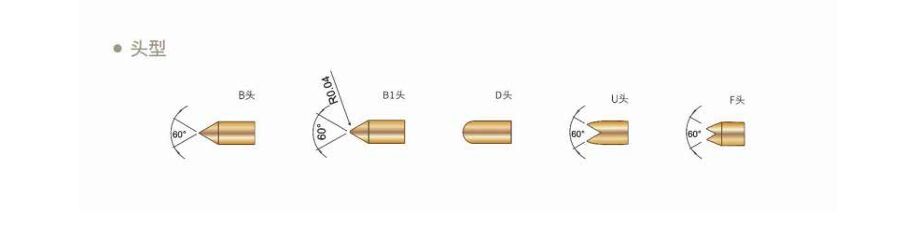

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

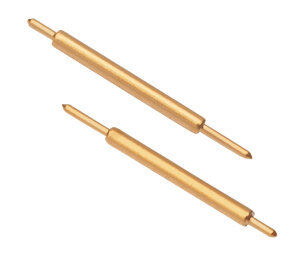

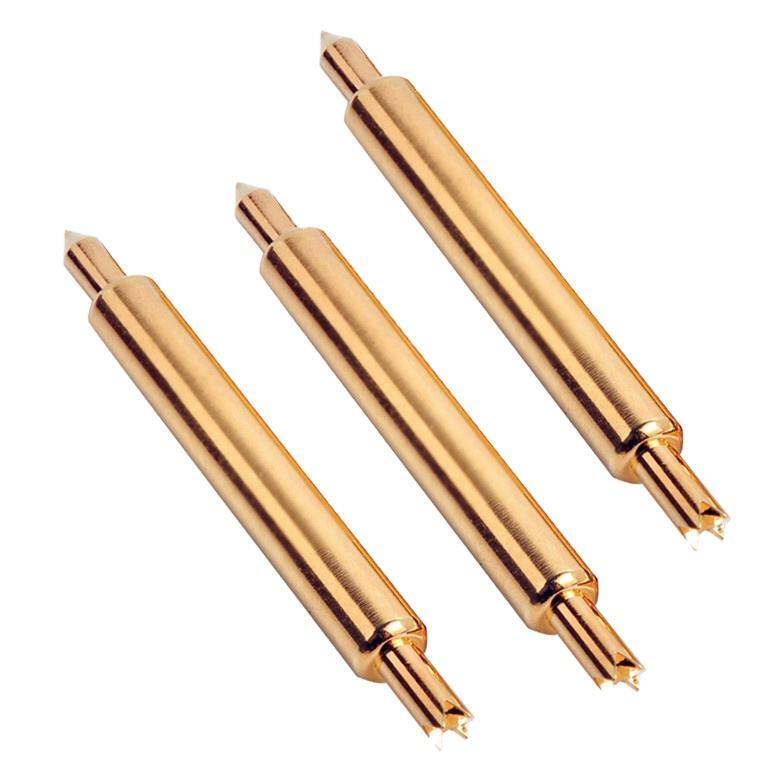

Product Images

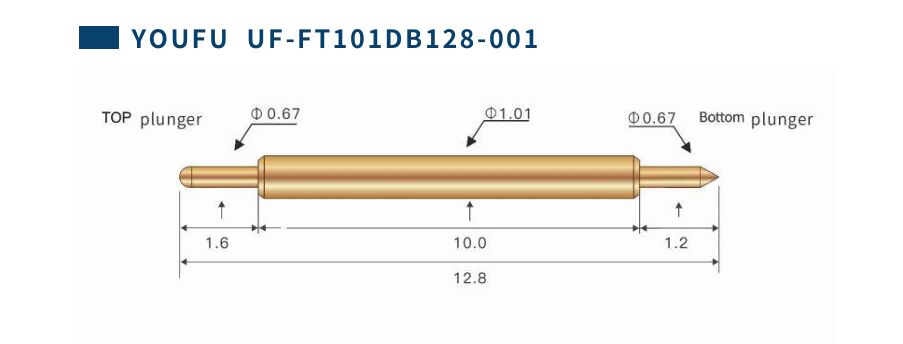

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
