Name: Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Casa > prodotti > Sonde di prova a molla >

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Gold Plated Spring Test Probe

1.50mm Full Stroke Pogo Pin

50mΩ Max Contact Resistance ICT Test Probe

Luogo di origine:

Cina

Marca:

WINNER

Certificazione:

ISO9100

Contattici

Richieda una citazione

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Dettagli del prodotto

Nome del prodotto:

sonda di prova di dimensioni standard

Stantuffo:

BeCu/SK4, placcato oro

barile:

Bronzo, dorato

Primavera:

SWP, Au su Ni palted

Disponibilità:

Dimensioni personalizzate disponibili

Rivestimento:

Oro placcato

MOQ:

3000pcs

Contenitore:

Oro d'ottone placcato

Valutazione attuale:

0.5 Amperi

Resistenza a contatto:

50 milioni di ohm max

Full Actus:

1.50mm

Corso nominale:

1,00 mm

Forza di molla:

1,0/2,0/3,0N

CEM1:

0,45 mm(0,0,67)

FR4:

0,45 mm(0,0,69)

Standard:

-40℃-+80℃

Design speciale"C":

-100℃-+200℃

Evidenziare:

Gold Plated Spring Test Probe

1.50mm Full Stroke Pogo Pin

50mΩ Max Contact Resistance ICT Test Probe

Termini di trasporto & di pagamento

Quantità di ordine minimo

3000pcs

Prezzo

999

Imballaggi particolari

Imballaggio neutrica o con logo OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C, Western Union, T/T

Capacità di alimentazione

100000 rotoli al mese

Prodotti correlati

Gold Plated Brass Barrel Spring Test Probe with 1.50mm Full Stroke and 50mΩ Max Contact Resistance for ICT Testing

Ottenga il migliore prezzo

Gold Plated Brass Barrel Spring Test Probe with 0.5amps Current Rating and 50 Millionhms Max Contact Resistance

Ottenga il migliore prezzo

Brass Barrel Stainless Steel Spring Test Probe with 1.0/2.0/3.0N Spring Force for ICT Applications

Ottenga il migliore prezzo

CHINA Supply YF-100 Brass Material Spring Contact Probe Pin

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione di prodotto

Spring Contact Probe Spring Test Probe P025

Customized Brass Barrel Stainless Steel Spring Test Probe P025 for In-Circuit-Test (ICT)

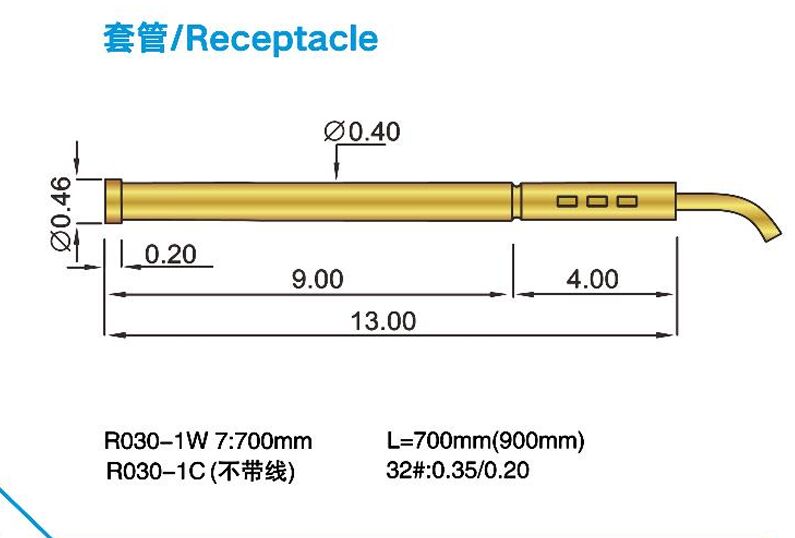

Production Specifications

Product Images

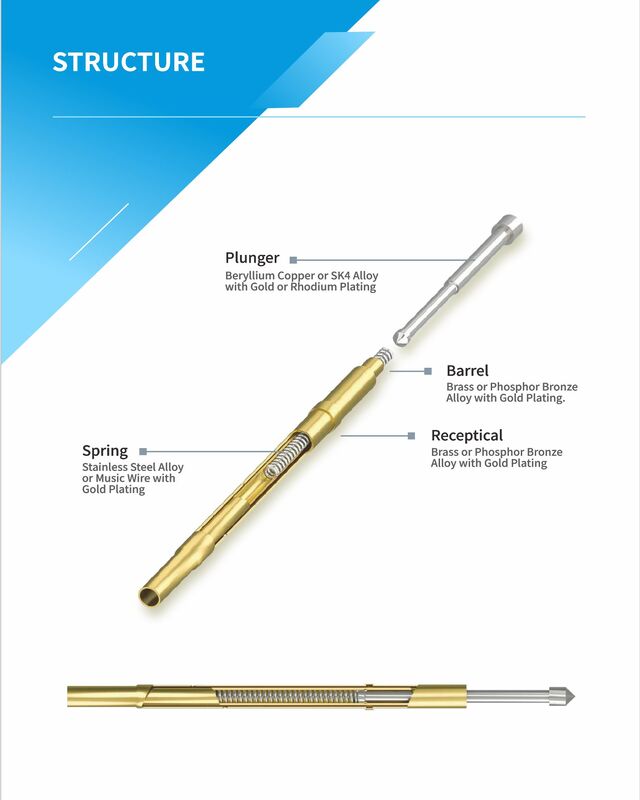

Detailed Component Illustration

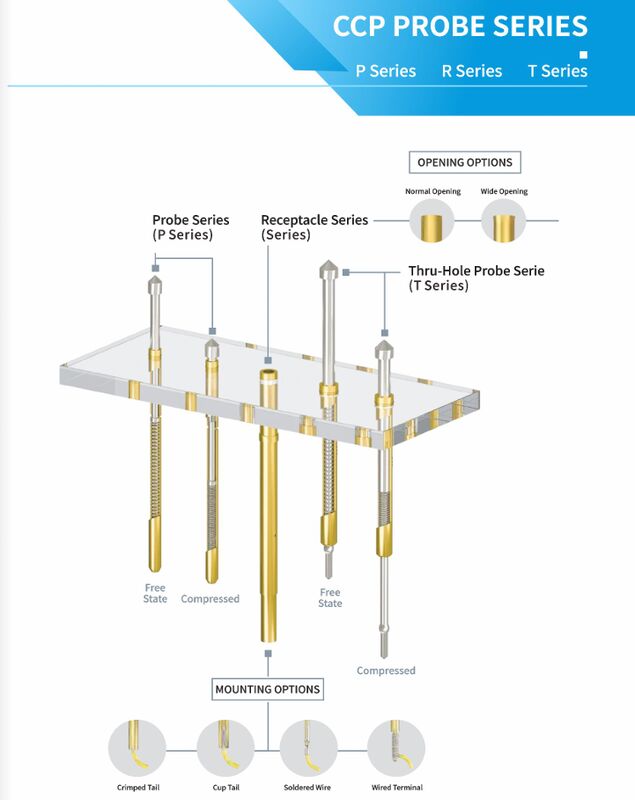

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
